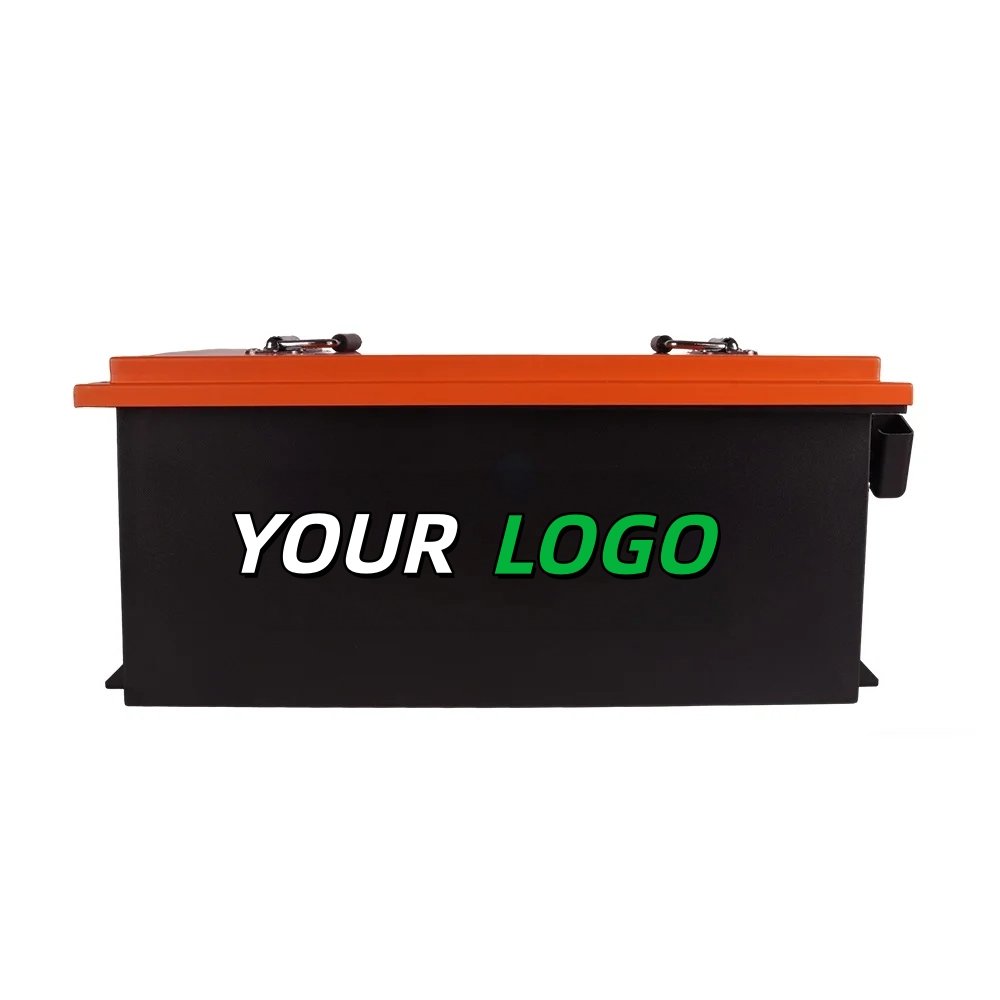

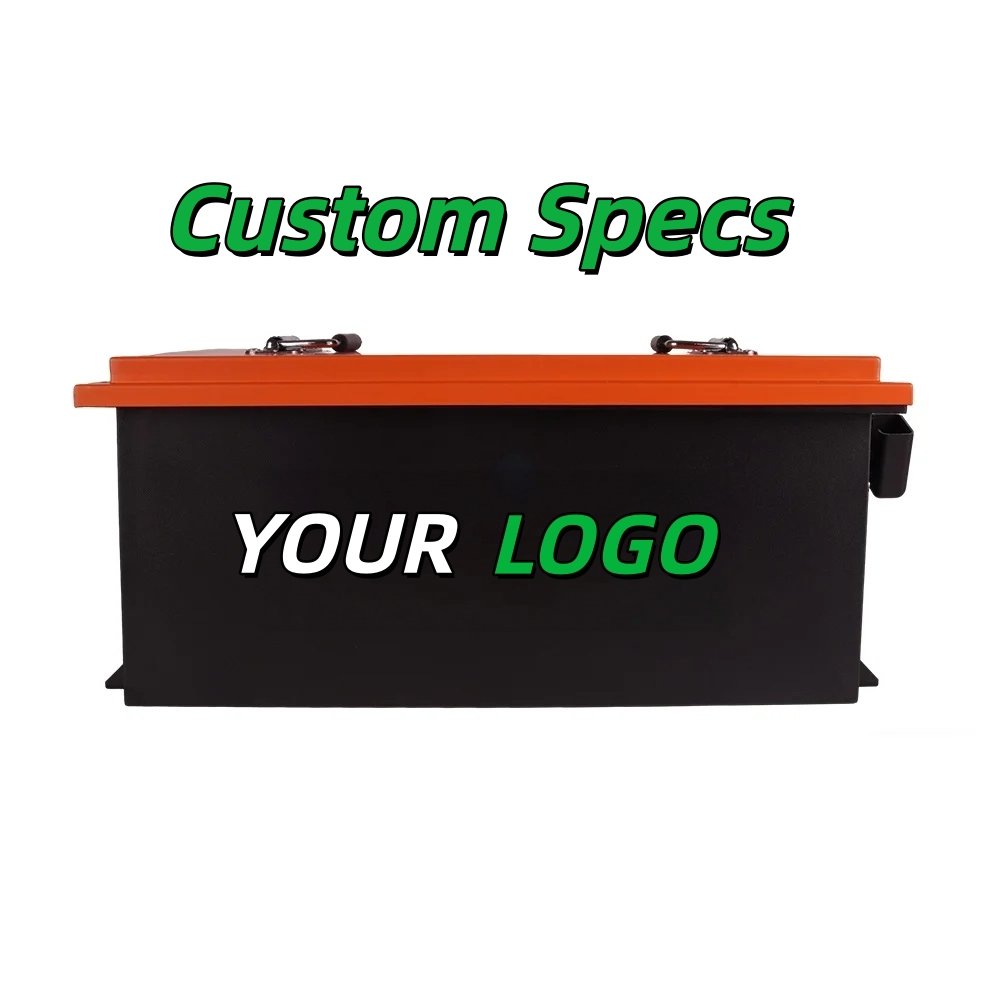

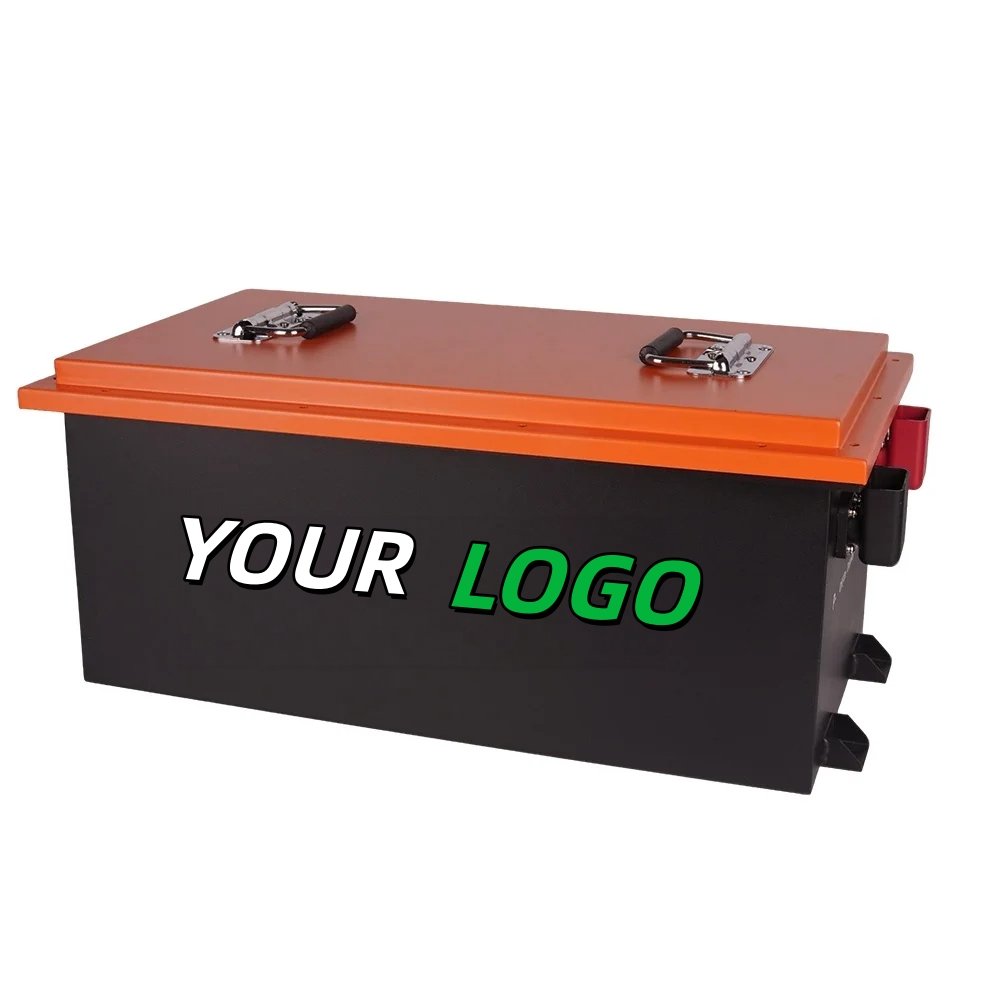

This 51.2V 105Ah LiFePO4 golf cart battery is our OEM/ODM lithium battery for replacing lead-acid batteries. It uses high-quality LiFePO4 cells with built-in BMS, long cycle life and high safety. Simple plug-and-play installation for golf cart upgrade.
We offer flexible OEM and ODM service for global buyers. We can do custom proofing and mass production to meet your brand and project requirements.
Ideal for golf carts, sightseeing vehicles and low-speed electric vehicles, perfect for lead-acid to lithium upgrade projects.
| Project Specifications | Standard Parameters | Remarks |
|---|---|---|
| Battery model | 51.2V105Ah | |
| Battery Type | LFP battery | |
| Nominal voltage (V) | 51.2 | |
| Nominal capacity (Ah) | 105±5% | 25℃±2℃,0.5C Charge,0.5C Discharge |
| Nominal energy (Wh) | 5376 | |
| Nominal Charging voltage (V) | 57.6 | |
| Nominal Discharging cutoff voltage (V) | 40 | |
| Standard charging current (A) | 20 | |
| Maximum charging current (A) | 50 | |
| Standard discharge current (A) | 20 | |
| Continuous discharge current (A) | 200 | |
| Maximum discharge current (A) | 400(35S) | |
| Maximum peak discharge current (A) | 600A(3S) | |
| Shell material | Metal casing | |
| Weight (kg) | About 51kg | |
| Initial internal resistance (mΩ) | ≤50 | New battery within 3 months,ACIR,1000HZ |
| Monthly self-discharge rate | ≤5% | Standard charged to 100% SOC,and storage for 28 days at 25±2℃ |
| Overall dimensions (mm) | 550*300*245mm | Length × Width × Height(Box size,without handle) ±2.0 |
| Delivery voltage (V) | 51 ~ 52.8 | 30~70%SOC |
| Cycle Life (times) | ≥6000 | Tested at 25℃±2℃,0.5C charge & 0.5C discharge to 80% remaining capacity |
| Communication mode | UART | |
| Charging temperature (℃) | 0~45 | |
| Discharge temperature (℃) | -20~55 | The surface temperature of the cell should not exceed 60℃ |
| Storage Temperature | -30~55℃ 90%RH Max (Less than 1 month) -10~45℃ 70%RH Max (More than 3 months) | |
| Recommended Storage Temperature | -10~35℃ 85%RH Max | The battery life will be reduced if stored in high temperature |
| Model | Dimension(L*W*H) | Weight | Nominal Capacity | Min Capacity | Nominal Voltage | Energy |
|---|---|---|---|---|---|---|
| 12.8V50Ah | 195*165*175mm | ≤5.6Kg | 50Ah | 48Ah | 12.8V | 640Wh |
| 12.8V100Ah | 260*166*210mm | ≤9.3Kg | 100Ah | 96Ah | 12.8V | 1280Wh |
| 12.8V200Ah | 480*170*240mm | ≤18.5Kg | 200Ah | 192Ah | 12.8V | 2560Wh |
| 12.8V280Ah | 524*245*220mm | ≤51.5Kg | 280Ah | 268.8Ah | 12.8V | 3584Wh |
| 25.6V50Ah | 260*170*212mm | ≤10.3Kg | 50Ah | 48Ah | 25.6V | 1280Wh |
| 25.6V100Ah | 530*206*215 mm | ≤26.2Kg | 100Ah | 96Ah | 25.6V | 2560Wh |
| 25.6V200Ah | 520*245*220 mm | ≤34.7Kg | 200Ah | 192Ah | 25.6V | 5120Wh |
| 38.4V100Ah | 520*268*220mm | ≤28.4Kg | 100Ah | 96Ah | 38.4V | 3840Wh |
| 38.4V106Ah | 550*300*230 mm | ≤37.7Kg | 106Ah | 100Ah | 38.4V | 3840Wh |
| 51.2V100Ah | 520*268*220mm | ≤36.3Kg | 100Ah | 96Ah | 51.2V | 5120Wh |
| 51.2V106Ah | 550*300*230mm | ≤47.9Kg | 106Ah | 100Ah | 51.2V | 5120Wh |
Q1: Can this 51.2V 105Ah battery directly replace lead acid batteries for golf carts?
A1: Yes. It is plug-and-play and fits most golf carts without major circuit changes.
Q2: What protection does this LiFePO4 battery have?
A2: It comes with built-in BMS to prevent overcharge, overdischarge, short circuit and overheating.
Q3: Can we customize parameters or logos on this lithium battery?
A3: Sure. We provide OEM/ODM service for logo, capacity, size and packaging.
Q4: What is your MOQ for OEM/ODM lithium battery orders?
A4: We support both small batch trial orders and large mass production.
Q5: What after-sales support can you offer?
A5: We provide professional technical support and reliable warranty for all batteries.
