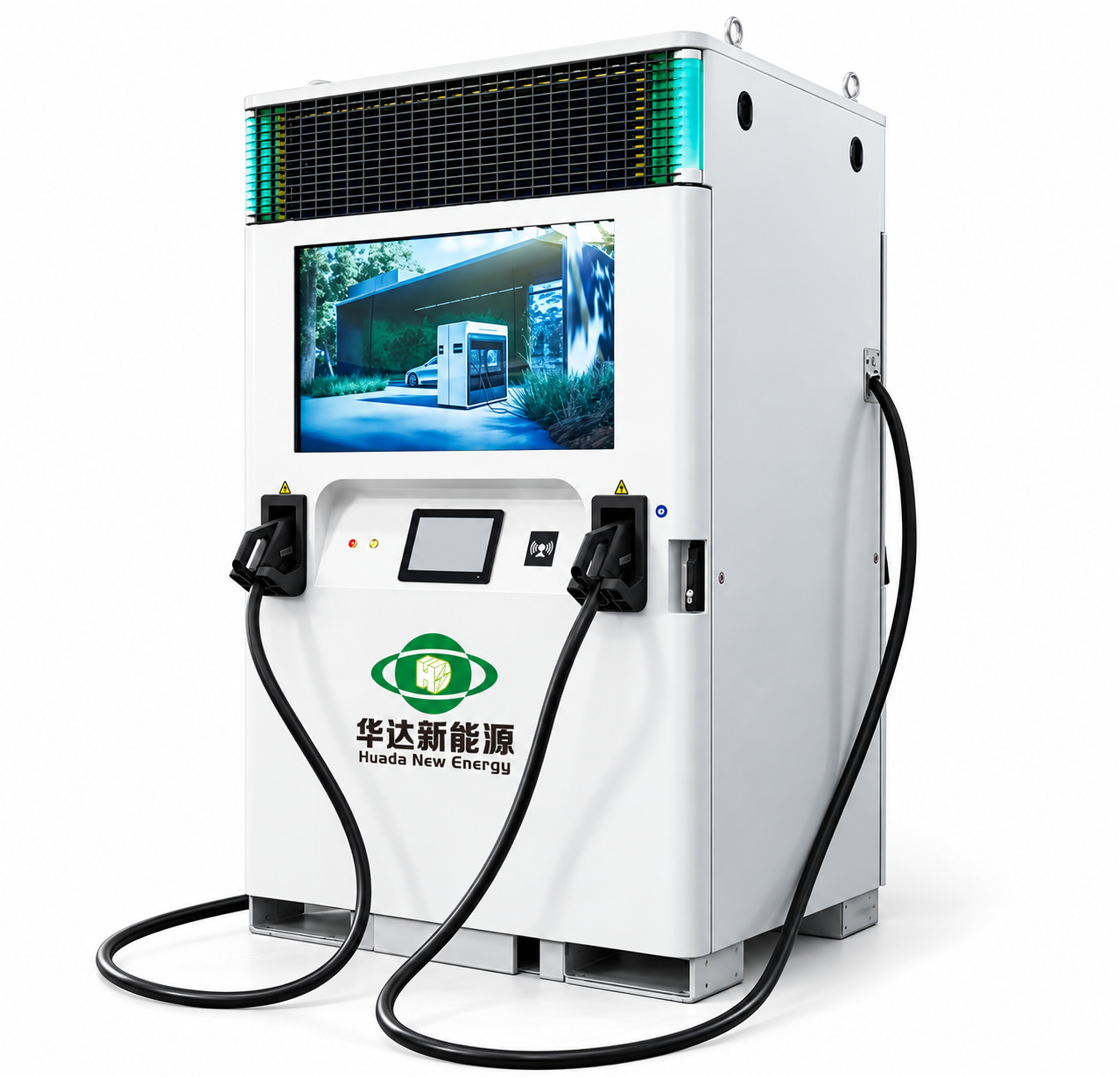

The H096 is an off-grid EV charging station with an integrated 193kWh LiFePO4 battery, designed to deploy DC fast charging anywhere — no grid upgrade, no construction, no waiting. Its 120kW rated output (up to 180kW) with dual charging guns serves two EVs at once, while the wide DC 200–1000V output range and 0–250A current cover virtually all electric vehicle models on the road today.
Where grid power is available, the station recharges from a 380Vac supply at up to 60kW — charge the battery at off-peak hours, then sell fast charging at peak hours and pocket the spread. Where the grid is absent, the DC gun-to-gun recharging method keeps the station in service anywhere.
This off-grid EV charging station uses LiFePO4 battery technology at a 614.4V platform, widely recognized for thermal stability and long cycle life (see LiFePO4 battery chemistry). Temperature control is handled by an intelligent liquid-cooling system, keeping power electronics and battery packs within safe limits even during sustained 120kW+ output in hot climates.

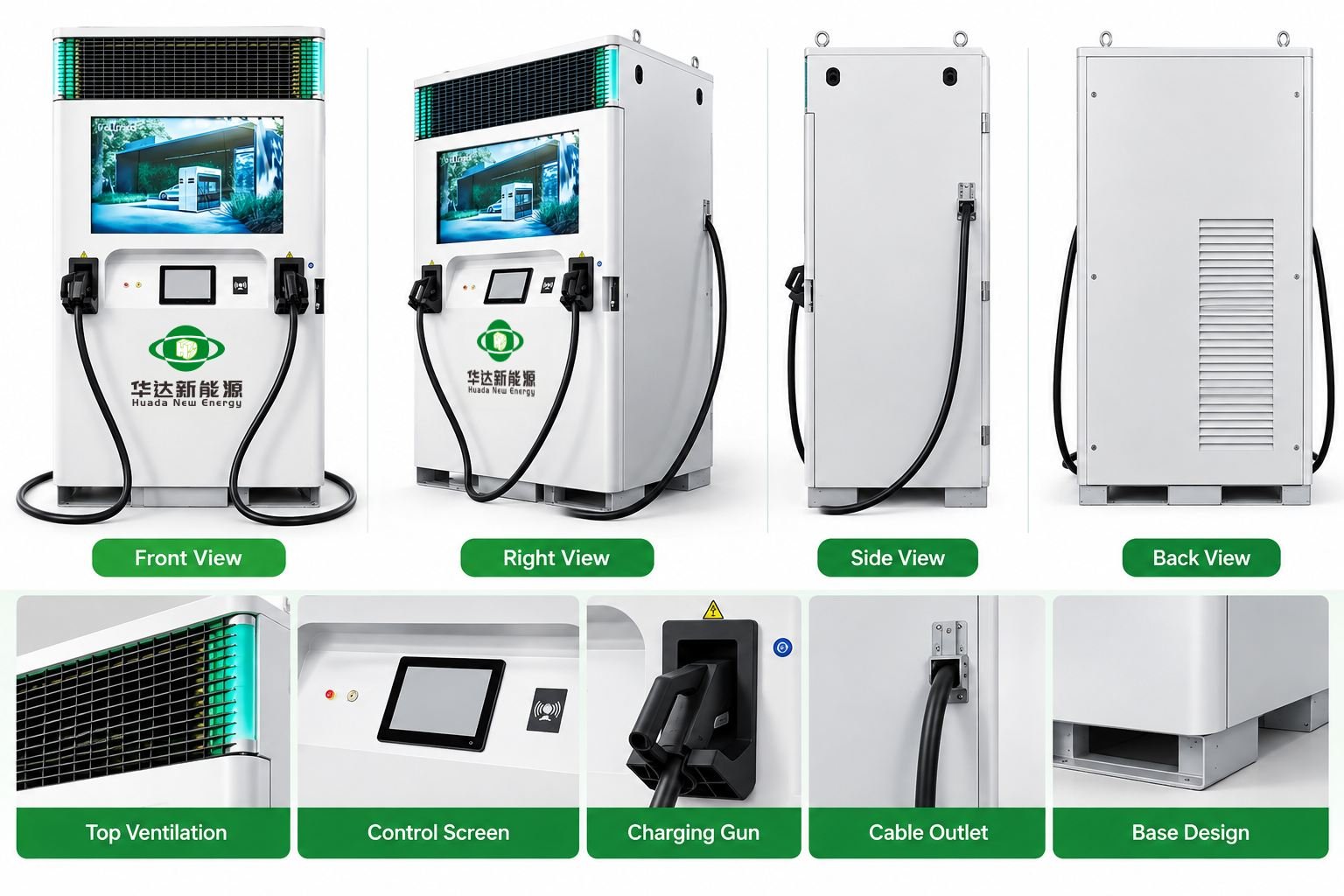

The station is certified to GB/T 36276, GB/T 34131, GB/T 34120 and GB/T 34133 standards, housed in a 1340×1100×2280 mm IP55 cabinet weighing 1600 kg with standard hoisting rings for crane handling. Gun standards, cabinet branding and communication protocols can all be customized for your market.
This off-grid EV charging station is built for charging operators entering locations where grid capacity is expensive or unavailable: tourist areas, parking lots, highway rest areas, fleet depots and temporary events. It is equally valuable for businesses that already run charging services and want to slash demand charges — the onboard battery buffers peak power drawn from the grid.
Each H096 unit undergoes full-function testing before shipment. Reinforced export packaging and standard hoisting points protect the 193kWh off-grid EV charging station during sea and land transportation, and our quality inspection team runs multi-round tests before delivery.
Looking for an OEM/ODM energy storage manufacturer or exploring more C&I energy storage solutions? Contact us for a quote.
| Model | H098-193kWh | ||
| Size (LWH) | 1340mm1100mm2280mm | Battery recharging method | DC national standard DC national standard charging gun |
| Weight | 1600kg | AC：380Vac(3P+N+PE) | |
| Battery voltage | 614.4V | Output power | 180kW |
| Battery voltage range | 480V-700.8V | Output voltage | DC200-1000V |
| Rated energy | 193kWh | Charging current | 0-250A |
| Rated input power | 60kW | Charging gun standard | National standard (customizable) |
| Rated output power | 120kW | Charging gun cable length | 7m |
| Rated grid voltage | 380V | Communication method | 4G |
| Grid voltage range | 323V~418V | Operating temperature range | -30°C~+50°C |
| Grid frequency range | 45Hz-55Hz | Maximum operating altitude | 3000m |
| Protection class | IP55 | Certification standards | GBIT 36276,GBT 34131,GBIT 34120,GBT 34133 |
| Temperature control method | intelligent liquid cooling | Communication interface | LAN/CAN/485 |
Q1. Do I need a grid connection to operate this charging station?
No. The H096 is an off-grid EV charging station with a 193kWh LiFePO4 battery built in, so it delivers 120kW DC fast charging without any grid upgrade. Where grid power is available, it recharges its battery at up to 60kW from a 380Vac supply or through DC gun-to-gun refilling — giving you full flexibility in choosing your site.
Q2. How many vehicles can it charge, and how long does a session take?
The H096 has dual charging guns with 7m cables, so it can charge two vehicles simultaneously. With a 120kW rated output (180kW maximum) and DC 200–1000V / 0–250A range, it covers virtually all EV models. A typical passenger EV session of 30–60kWh takes roughly 20–30 minutes depending on the vehicle’s onboard limits and battery state.
Q3. How does the station reduce my energy costs?
By charging the 193kWh battery during off-peak hours and discharging it during peak hours, the station buffers your grid draw and cuts demand charges — a major cost for high-power charging sites. You can also sell fast charging at peak pricing while paying off-peak rates, and the liquid-cooled system keeps performance stable during sustained high-power operation.
Q4. What energy storage solutions does HUDA New Energy offer?
We cover the full spectrum — outdoor portable power stations, residential (home) storage systems, and commercial & industrial (C&I) energy storage including containerized BESS and this battery-integrated EV charging station. Whatever your project scale, you can source a complete portfolio from a single manufacturer.
Q5. Can the charging gun standard and certifications be customized for our market?
Yes. The charging gun standard is customizable (GB/T, CCS2, Type 2 and others), along with cabinet branding, output configuration and communication protocols. The station is certified to GB/T 36276, GB/T 34131, GB/T 34120 and GB/T 34133. Tell us your target market and we will confirm the certifications and configuration your project requires.
