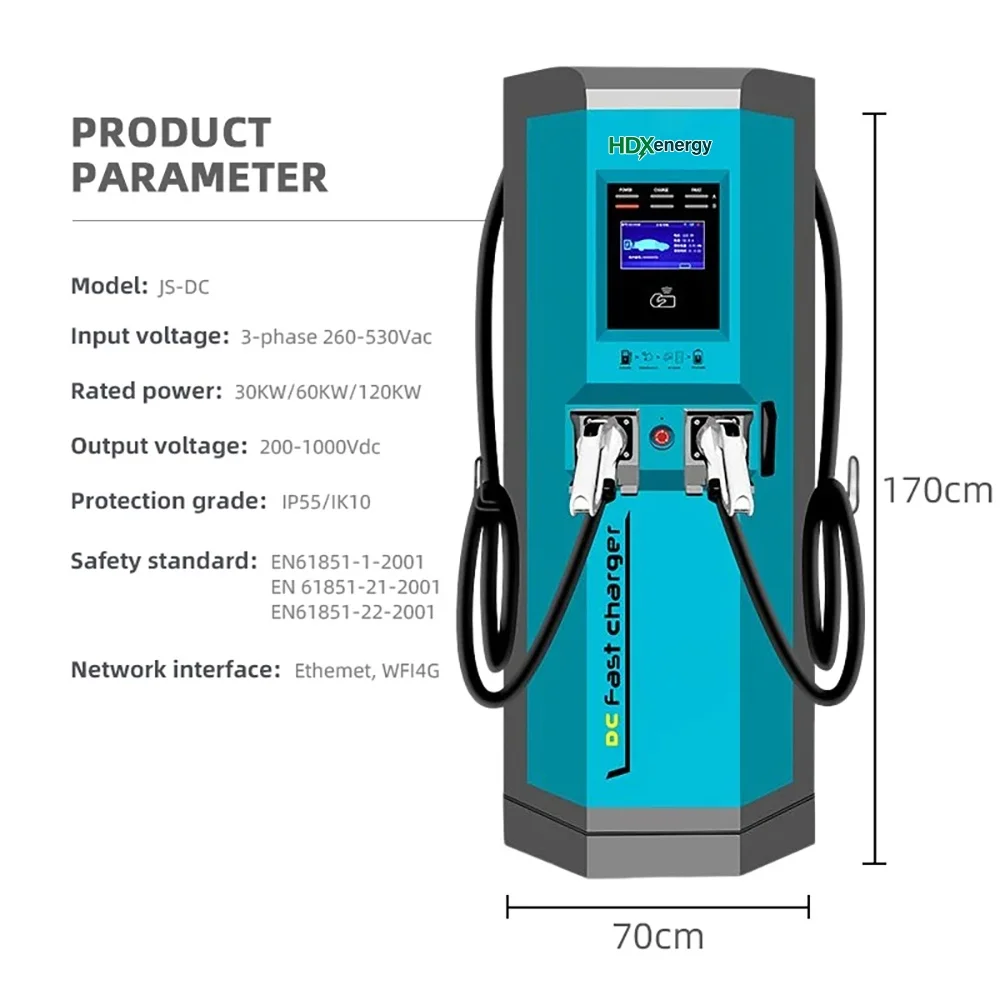

The HUDA JS-DC is a commercial DC fast charging station available in 30kW, 60kW and 120kW configurations — built for public charging networks, parking operators and fleets worldwide.
Key Features:

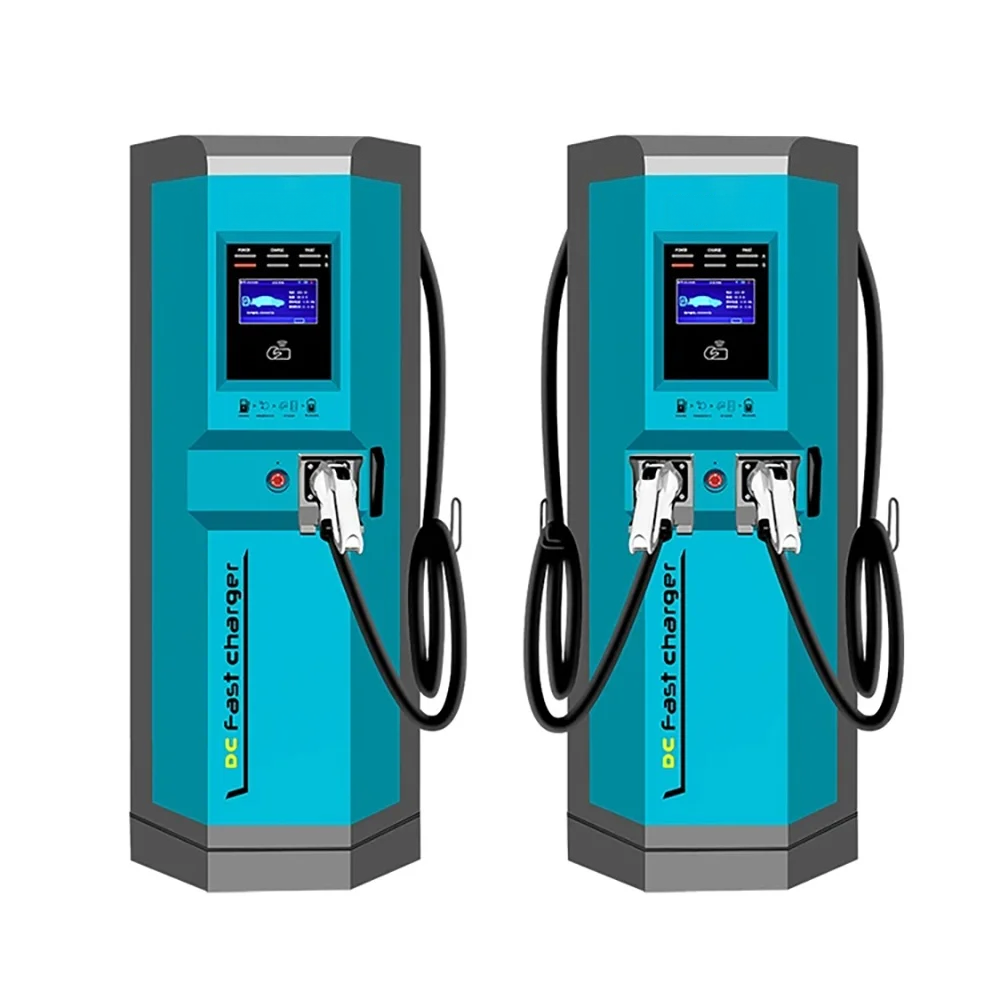

- 30kW / 60kW / 120kW power options, single or double charging ports
- Wide output range DC 200-1000V, 3-phase 260-530Vac input
- Connector options: CCS1, CCS2, CHAdeMO and GB/T for global EV compatibility
- Compliant with EN 61851-1, EN 61851-21 and EN 61851-22 safety standards
- RFID, scheduled charging, VIN identification and QR code authentication
- Ethernet / WiFi / 4G connectivity for remote management

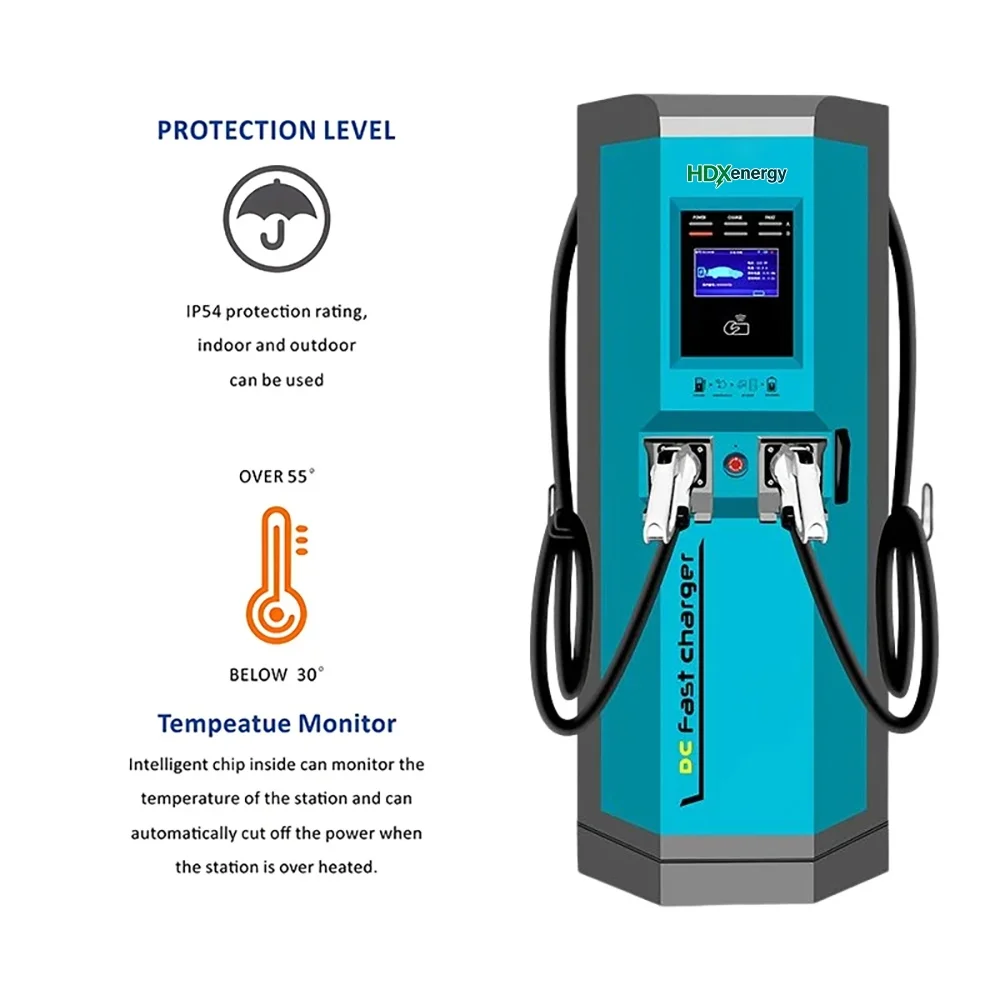

- IP55 / IK10 rated enclosure for indoor and outdoor use
- OEM/ODM and wholesale orders welcomeThe HUDA JS-DC is a commercial DC fast charging station designed for public charging networks, commercial parking lots, highway service areas and fleet operations. Available in 30kW, 60kW and 120kW configurations with single or double charging ports, it converts three-phase AC power (260–530Vac) into DC 200–1000V output — delivering efficient fast charging for virtually every EV on the market.
As a professional energy storage and EV charging manufacturer, HUDA New Energy builds the JS-DC on an industrial-grade platform compliant with EN 61851-1, EN 61851-21 and EN 61851-22 safety standards, housed in an IP55 / IK10 rated enclosure that performs reliably indoors and out.
This DC fast charging station supports flexible operating modes for commercial operators: drivers authenticate with an RFID card or QR code, the station recognizes the vehicle automatically through VIN identification, and scheduled charging lets you set charging windows to take advantage of off-peak electricity rates. Ethernet, WiFi and 4G connectivity link every unit to your backend platform for real-time status, pricing control and OTA updates — one operator can manage an entire network from a single dashboard.
With CCS1 and CHAdeMO connectors for North American and Japanese models, CCS2 for European markets and GB/T for China, this commercial EV charging station serves every major brand — from BMW, VW and Chevrolet to Nissan, Kia, BYD, NIO and XPeng. Connector configuration is customized per order, so your units arrive ready for your local market.
Each JS-DC unit undergoes full-function testing before shipment. Reinforced export packaging protects the DC fast charging station during sea and land transportation, and our quality inspection team runs multi-round tests before delivery.
Looking for an OEM/ODM EV charging manufacturer or exploring more commercial energy solutions? Contact us for a quote.

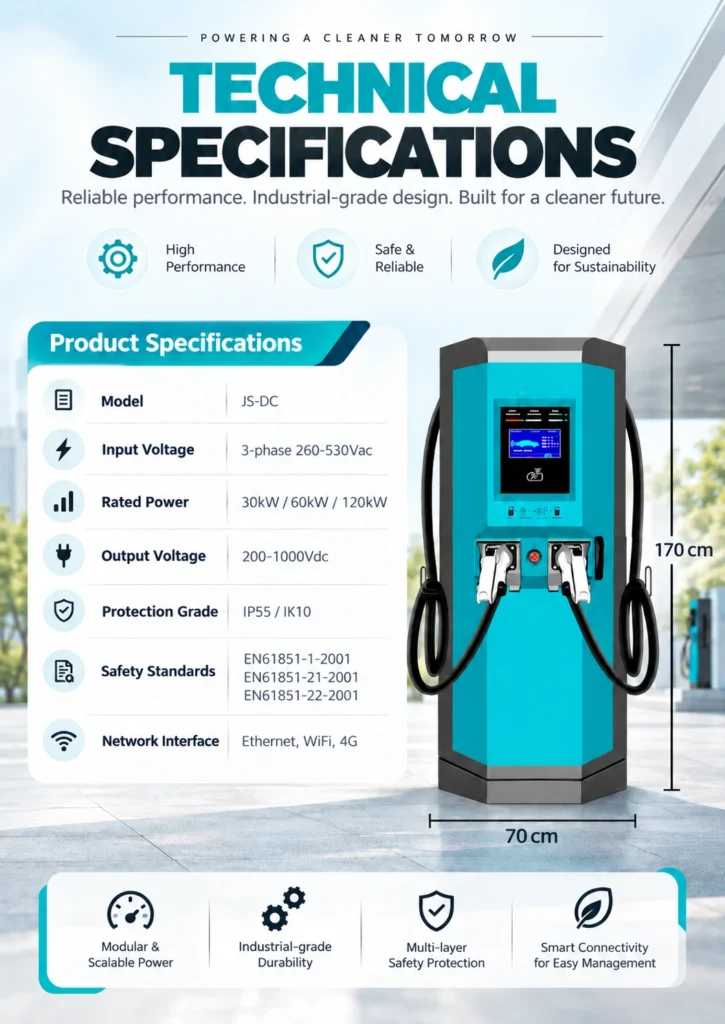

| ltem | Standard parameter value | ||||||
| Input voltage | 3-phase 260-530Vac | ||||||
| luput frequency | 50Hz/60Hz | ||||||
| Rated power | 60KW/120KW/160KW/240KW | ||||||
| Output voltage | 200~1000Vdc | ||||||
| Output current | 0-200Adc | ||||||
| Input voltage | 3-phase 260-530Vac | ||||||
| Protection grade | IP55/IK10 | ||||||
| Standards | UL 2202,CSA-C22.2No.107.1-16UL2231,CSA C22.2 NO.281 | ||||||
| Weight | 230Kg~260Kg | ||||||
| Dimension | 6507001700mm(L**H) | ||||||
| Network interface | Ethemet, WIFl,4G | ||||||
| Safety standard | EN 61851-1-2001EN 61851-21-2001EN61851-22-2001 | ||||||
Q1. Which connector standards does the JS-DC support?
The station supports CCS1, CCS2, CHAdeMO and GB/T connectors, covering North American, European, Japanese and Chinese EV models. Single or double ports are optional, and the connector configuration is customized per order — tell us your market and your units arrive ready for local vehicles.
Q2. What power options are available, and how fast does it charge?
The JS-DC comes in 30kW, 60kW and 120kW rated configurations with a DC 200–1000V output range. A 120kW unit can add roughly 200–400 km of range to a typical passenger EV in 20–30 minutes, depending on the vehicle’s maximum charging rate and battery state. Three-phase 260–530Vac input fits standard commercial power supplies.
Q3. Can I manage multiple stations remotely?
Yes. Each station connects through Ethernet, WiFi or 4G to your backend platform, supporting real-time status monitoring, pricing control, OTA updates and user authentication via RFID, QR code, VIN identification or scheduled charging. One operator can manage an entire charging network from a single dashboard.
Q4. What energy storage solutions does HUDA New Energy offer?
We cover the full spectrum — outdoor portable power stations, residential storage systems, and commercial & industrial solutions including containerized BESS, battery-integrated EV charging stations and grid-connected DC fast chargers. One manufacturing partner for your entire project portfolio.
Q5. Do you support OEM/ODM customization, and can we visit the factory?
Yes — OEM/ODM is our core business alongside our own brand. We customize power ratings, connector standards, enclosure branding, payment systems and backend protocols, backed by multiple patents and High-Tech Enterprise certification. Factory visits are welcome; send us your target specs and market for the best-fit solution and quote.
