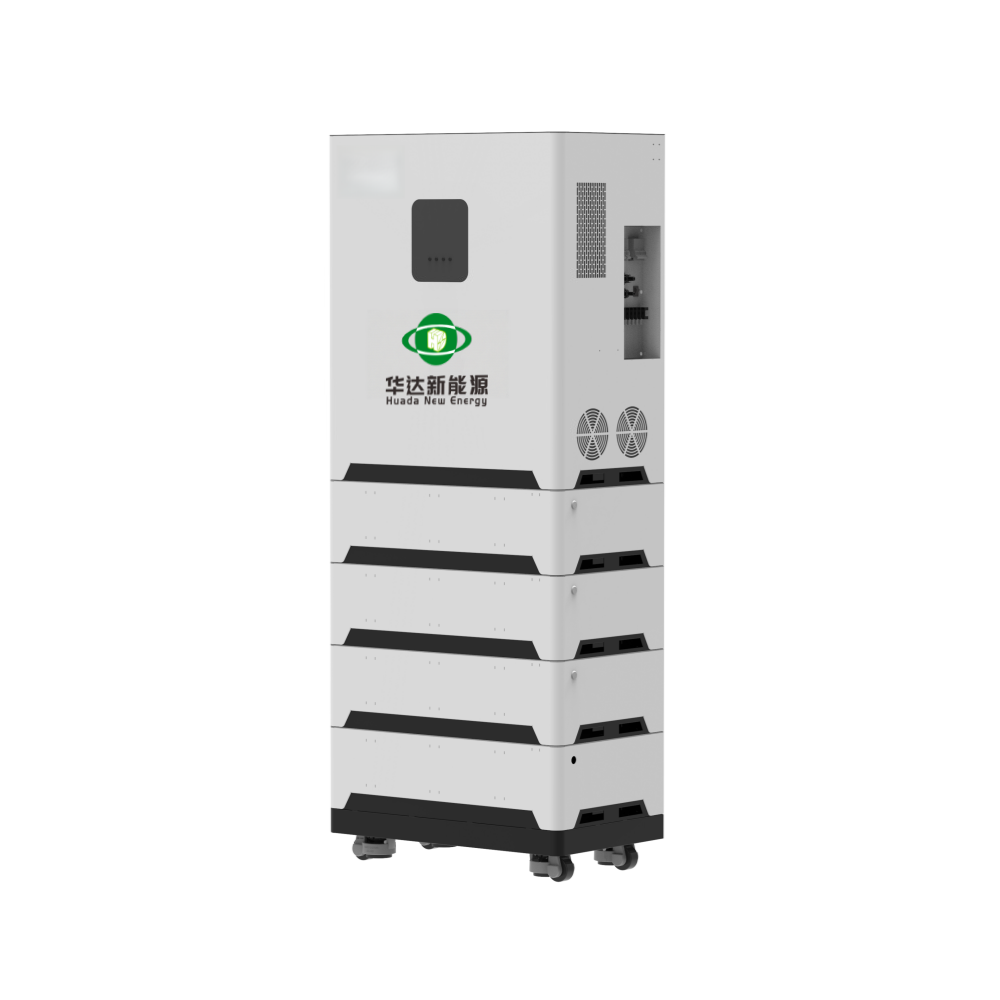

The H096-10kWh all-in-one battery comes from a professional LiFePO4 energy storage supplier, delivering safe and flexible home solar storage.
Key Features:
– High-voltage platform with 95% charge & discharge efficiency
– Easy installation with a mobile, flexible placement design
– Wide temperature tolerance for various environments
– Up to 6 modules in series for larger energy needs
– Lifespan of 6,000+ cycles with smart BMS control
– WiFi/GPRS remote monitoring included

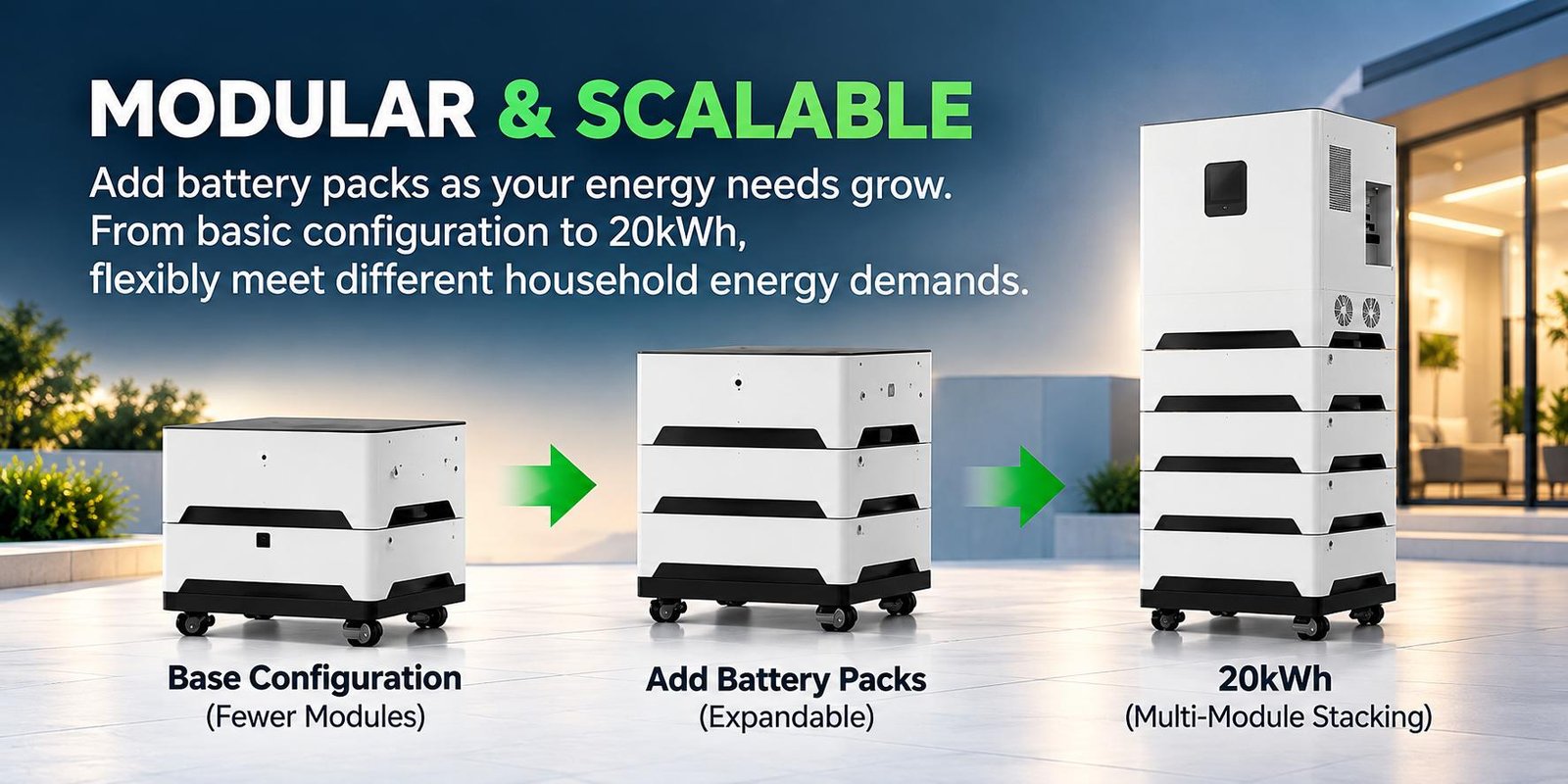

Our 20kWh stackable all-in-one home battery is an integrated home energy storage solution with a built-in inverter. Powered by 31.2V LiFePO4 cells, it stores surplus solar power during the day and supplies reliable electricity at night or during grid outages. The stackable design makes capacity expansion simple for households with higher power consumption — no extra inverter, no complex wiring.
The 20kWh stackable all-in-one home battery adopts mature LiFePO4 cell technology, widely recognized for thermal stability and long cycle life (see LiFePO4 battery chemistry). With the integrated inverter, no extra inverter matching is needed, which greatly reduces system cost and installation difficulty. Real-time monitoring lets you check voltage, remaining capacity and running status at any time, and multiple units can be stacked in parallel to meet larger household power demand.
This 20kWh stackable all-in-one home battery is perfect for homeowners with rooftop solar systems. It helps cut electricity bills and provides reliable power when the grid fails, keeping essential loads like lighting, refrigerators and communication devices running during blackouts. It is also a great choice for villas, remote houses and areas with unstable grid power, offering flexible backup without complex construction work.
Typical applications of this 20kWh stackable all-in-one home battery include:
Each unit goes through full-function testing before shipment. Solid export packaging protects the 20kWh stackable all-in-one home battery during sea and land transportation, and our quality inspection team runs multi-round tests to guarantee stable performance before delivery.
Looking for an OEM/ODM energy storage manufacturer or comparing it with our other home batteries? Contact us for a quote.
| Product name | H096-(5-20)kWh | H096-10kWh Pro | |||
| Battery module | 51.2V/5.12Wh/51.8kg | ||||
| Number of modules | 1 | 2 | 3 | 4 | |
| Battery capacity | 5.12kWh | 10.24kWh | 15.36kWh | 20.48kWh | 10.24kWh |
| Nominal voltage | 51.2V | 51.2V | 51.2V | 204.8V | 51.2V |
| Battery voltage range | 40V~58.4V | 40V~58.4V | 40V~58.4V | 160V~233.6V | 40V~58.4V |
| Size (L*W*H) | 637/387/914 | 637/387/1075 | 637/387/1236 | 637/387/1397 | 603/300/1620 |
| Weigh | 118kg | 169.8kg | 221.6kg | 277.4kg | 180kg |
| Max charge/discharge current | 45A | 80A | 110A | 45A | 80A |
| High-voltage output | Not supported | Support | Not supported | ||
| Battery type | LiFePO4 | ||||
| Communication mode | Support WIFI bluetooth connection with mobile APP | ||||
| Battery cycle life | After 3000 cycles,the remaining capacity is still more than 80% | ||||
| Charging temperature | 0℃ ~ 50℃ | ||||
| Discharge temperature | -20℃ ~ 50℃ | ||||
| Communicate | RS485/CAN | ||||
| Protection level | IP20 | ||||
| Grid connection type | L+N+PE | ||||
| Overload capacity | 110% | ||||
| System protection | Over temperature protection/Over voltage protection/Over current protection/ Over charge protection/Over discharge protection_Load short circuit protection/Over load protection. | ||||
| Installation mode | Stackable | ||||
| Certification standards | CF FCC ROHS | ||||
Q1. What is the 20kWh stacked home energy storage system?
A 20kWh modular battery system built from stacked LiFePO4 modules, ideal for solar self-consumption, home backup and peak shaving.
Q2. Is it easy to install and expandable?
Yes. Plug-and-play stacking needs no racking or complex wiring, and capacity expands by adding modules anytime.
Q3. How long does it last and how safe is it?
LiFePO4 cells rated 6,000+ cycles with a built-in BMS for overcharge, overcurrent and thermal protection.
Q4. What energy storage solutions do you offer?
We cover outdoor portable power, residential, and commercial & industrial (C&I) storage — one full portfolio from a single manufacturer.
Q5. Do you support OEM/ODM?
Yes. We run both our own brand and OEM/ODM, customizing capacity, branding, enclosure, protocols and packaging.
HUDA New Energy (Huizhou Huada Technology Co., Ltd.) is a professional energy storage manufacturer with a complete product portfolio, covering portable power stations, household energy storage systems and commercial & industrial (C&I) energy storage solutions. Starting from lead-acid battery production, we have grown into an advanced lithium technology manufacturer, backed by multiple invention patents, utility model patents, design patents and High-Tech Enterprise certification.
With a professional R&D team, modern production facilities and a global energy monitoring data center, we provide reliable OEM/ODM services for customers worldwide. Factory visits are always welcome — contact us to schedule a tour or discuss your project.
