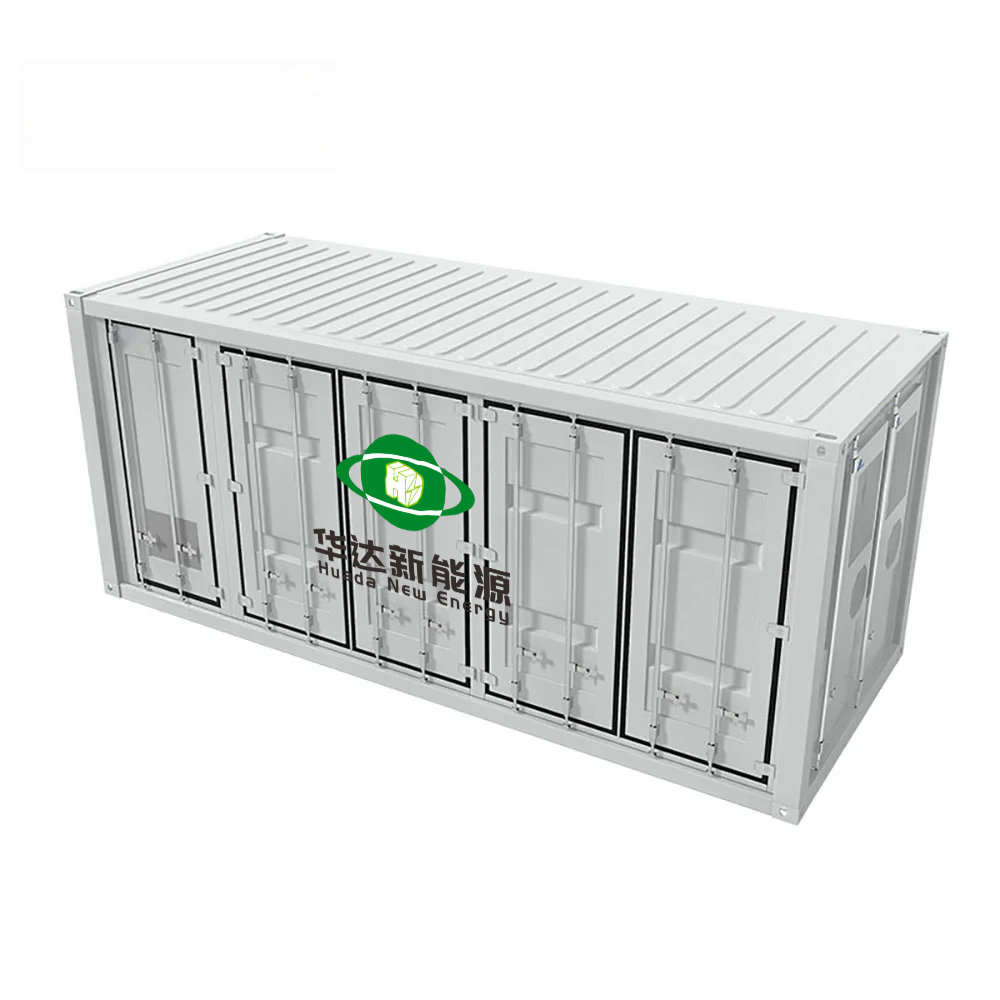

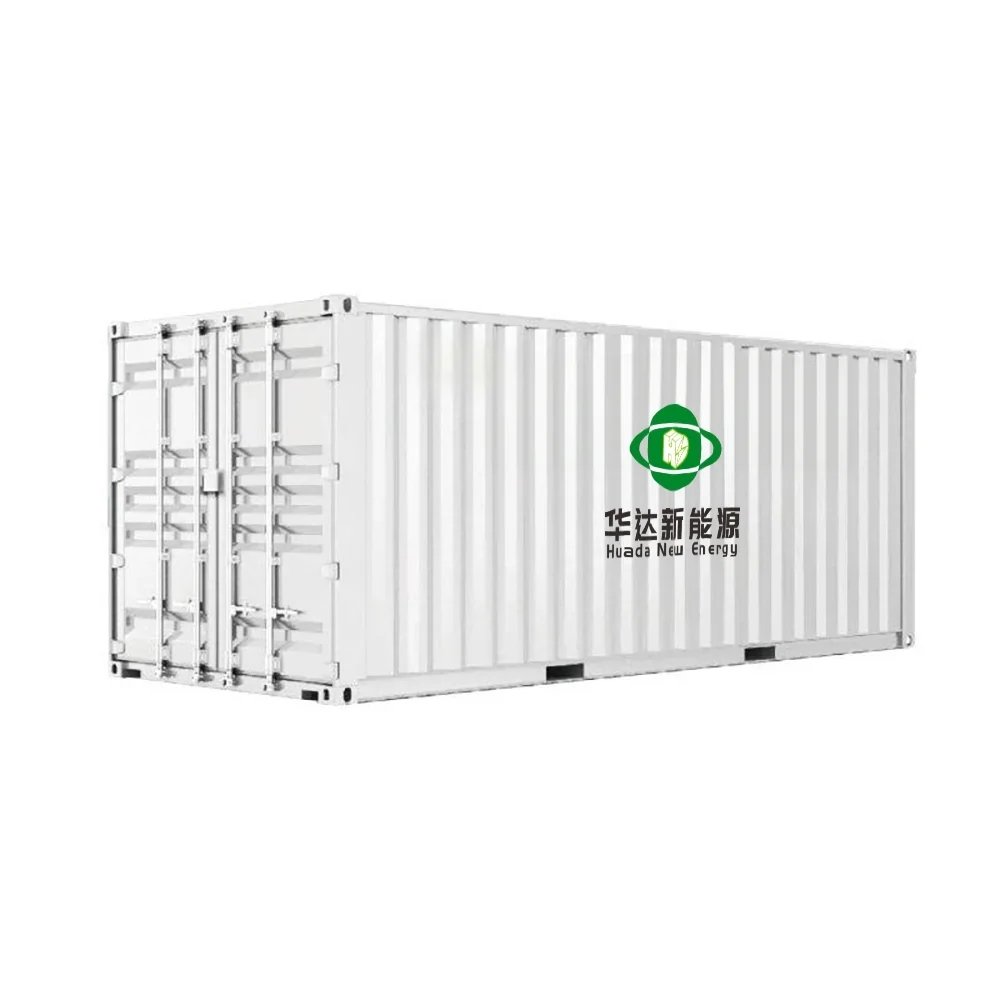

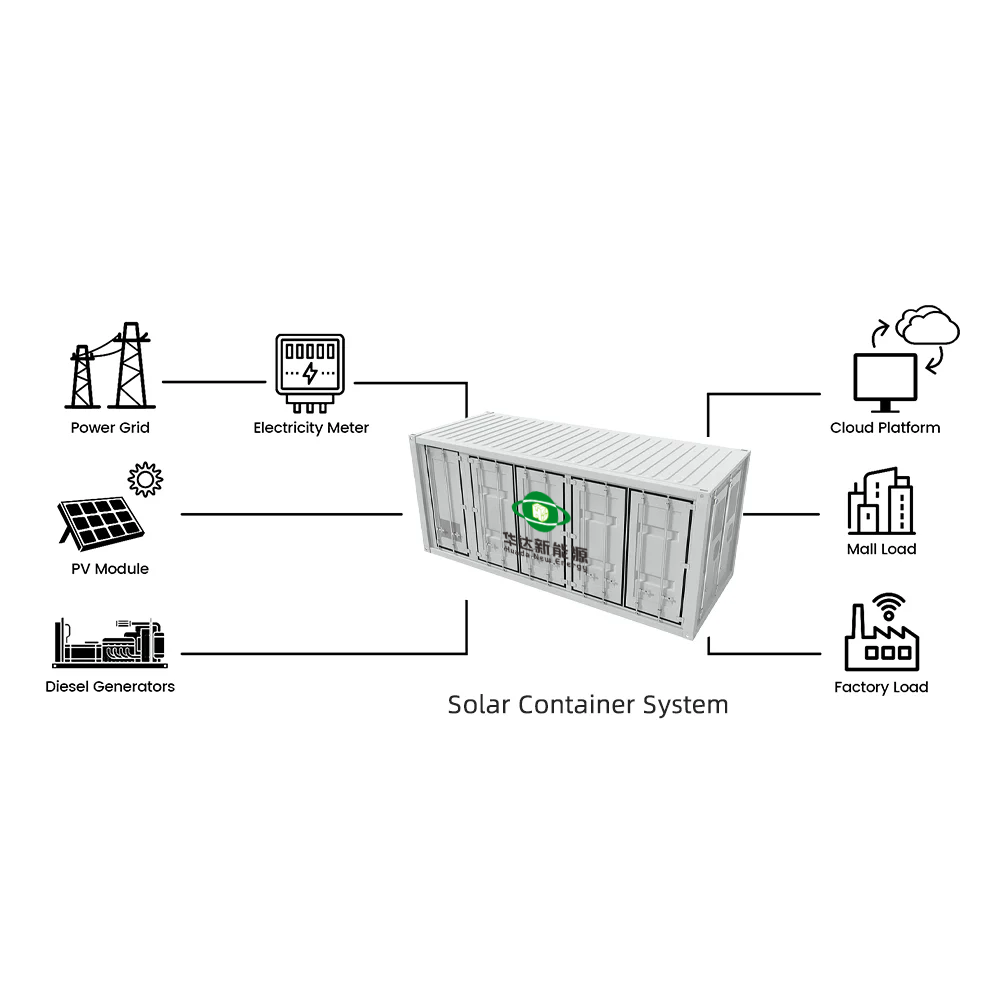

The 1MWh Containerized Energy Storage System is a fully integrated 20-foot container battery energy storage solution designed for commercial and industrial energy applications. Manufactured by Huda New Energy, this BESS unit comes pre-wired and pre-tested inside the standard shipping container, greatly shortening on-site installation time. It can work with solar PV panels, utility grid and diesel generators to realize multiple functions including peak shaving, load shifting, emergency backup power and off-grid power supply.

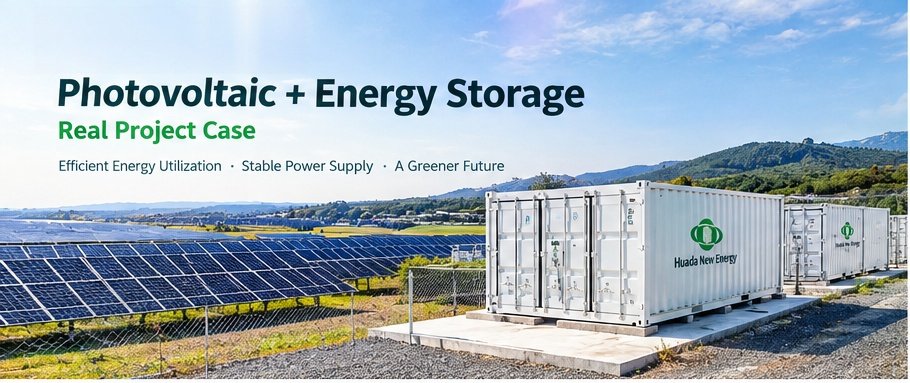

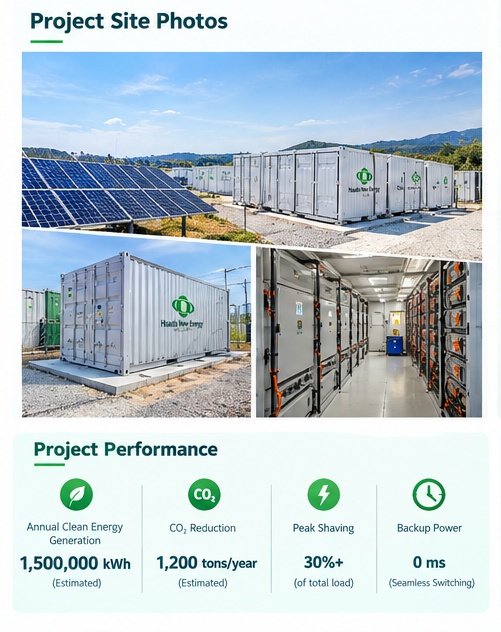

The 1MWh Containerized Energy Storage System widely serves factories, mining sites, commercial parks, microgrid projects and renewable power stations. For industrial users, it cuts high electricity demand charges by peak shaving. For remote areas without stable grid, the system provides reliable uninterrupted backup power when grid failure occurs. Combined with photovoltaic systems, it maximizes self-consumption of solar energy and reduces electricity bills significantly.

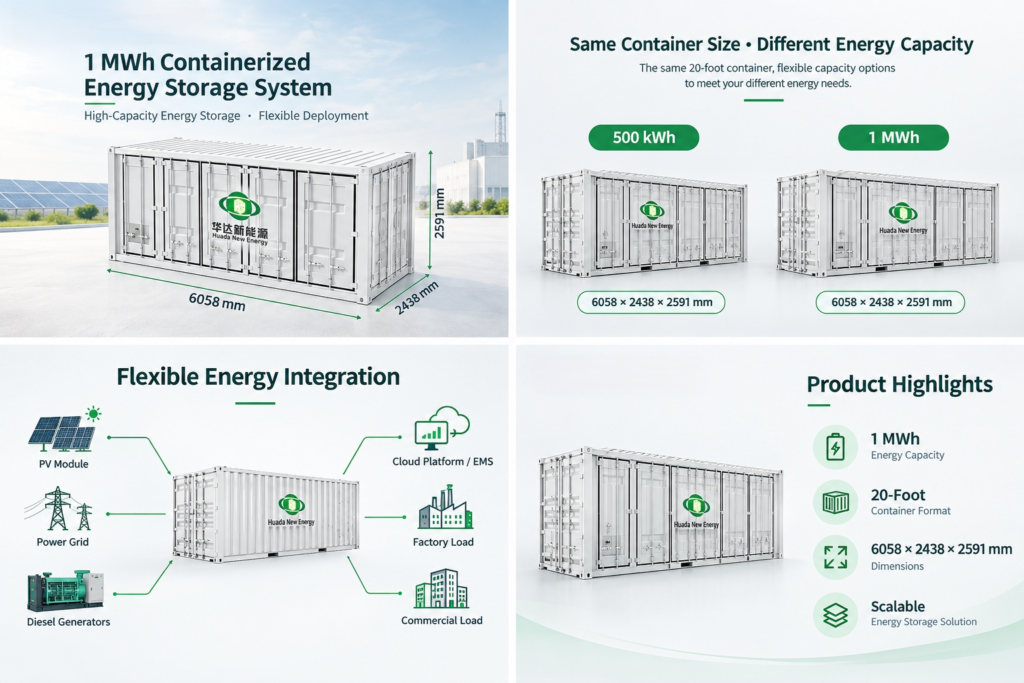

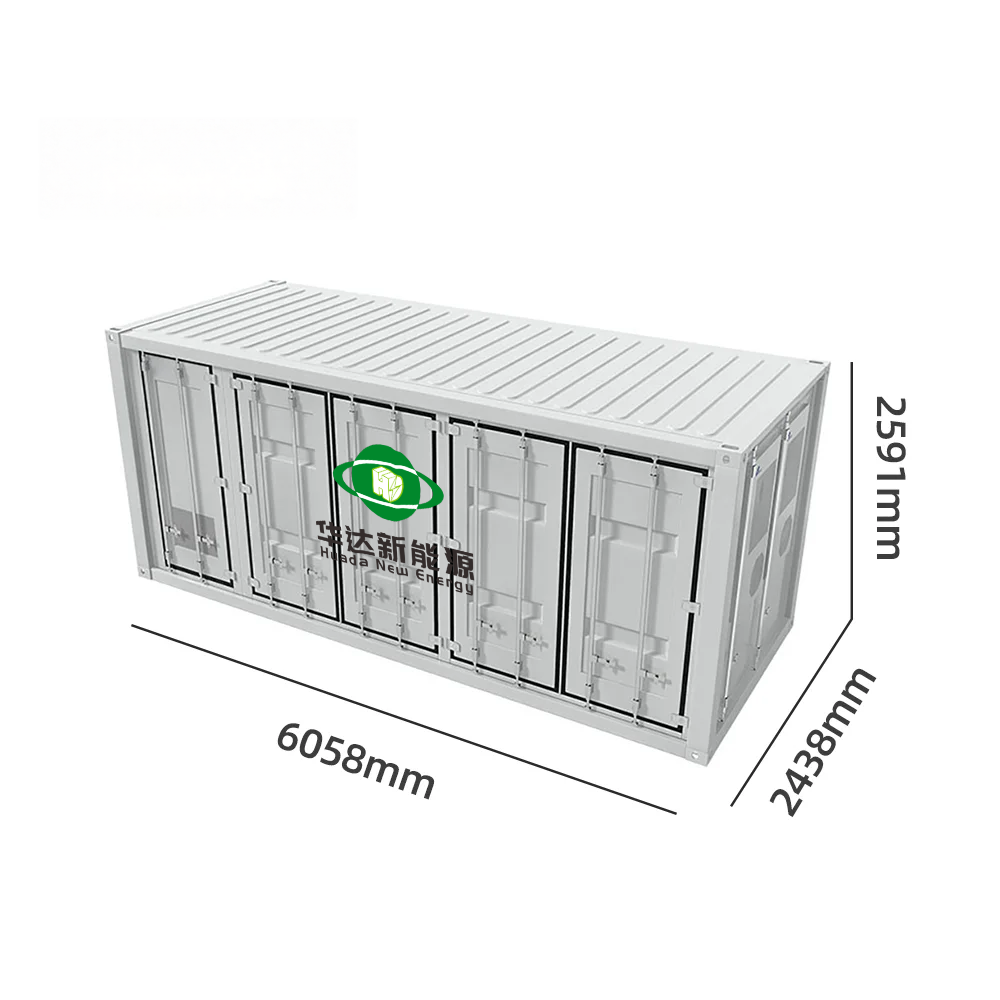

This 1MWh Containerized Energy Storage System adopts standard 20ft container size with dimension 6058 × 2438 × 2591 mm. The whole system integrates battery packs, PCS, BMS, EMS, fire suppression and air cooling system in one cabinet. All components pass strict factory testing before delivery. Huda supports OEM and ODM service to customize parameters according to clients’ local project requirements and grid standards.
Huda New Energy is a professional manufacturer and exporter of containerized battery energy storage systems. We focus on developing high-quality industrial & commercial energy storage products. Our products have passed relative certification for global market. We provide full after-sales support, technical guidance and long product warranty for all our energy storage projects.
| Product model | H098-1MWh |
| Battery capacity | 1680Ah/598.4V (1005.3kWh) |
| Rated power | 500kW |
| Peak power | 550kW |
| Battery voltage range | 467.5–682.5V |
| AC rated current | 722A |
| Maximum AC output current | 794A |
| Size (L*W*H) | 6058*2438*2591(mm) |
| Weight | 16200kg |
| Battery type | LiFePO4 |
| AC output voltage | 400V(-20%~+15%) |
| Wireless communication | Supports 4G communication |
| Communicate | RS485/CAN |
| Battery cycle life | Over 6000 cycles |
| System protection | Over temperature protecton/Over voltage protection/Over current protection/Over charge protection/Over discharge protection/Load short circuit protection/Over load protection. |
| Discharge temperature | -20℃~50℃（The recommended ambient temperature is 20℃ to 30℃.） |
| Charging temperature range | -5℃~50℃（The recommended ambient temperature is 20℃ to 30℃.） |
| Storage temperature | The recommended ambient temperature is 0℃ to 45℃ |
| Certification standards | IEC UN38.3 MSDS ROHS |
500kWh Containerized Energy Storage System and stackable home energy storage battery.
Q1：What battery type is used in your 1MWh container energy storage system? A：Our 1MWh container energy storage system uses LiFePO4 batteries with long cycle life and high safety, equipped with air cooling thermal management.
Q2：What functions does the 1MWh containerized energy storage system support? A：It supports peak shaving, demand charge reduction, solar & wind coupling, frequency regulation and off-grid microgrid power supply.
Q3：What safety protections does this energy storage container have? A：It comes with BMS, fire suppression device, overvoltage, overcurrent and overtemperature protection to prevent thermal runaway.
Q4：Can you provide CE / UL certification for the 1MWh energy storage container? A：Yes. We offer mainstream certifications like CE for project bidding and customs clearance.
Q5：What is the lead time for the 1MWh container energy storage order? A：Normally 8–12 weeks, depending on order quantity and customized requirements.
