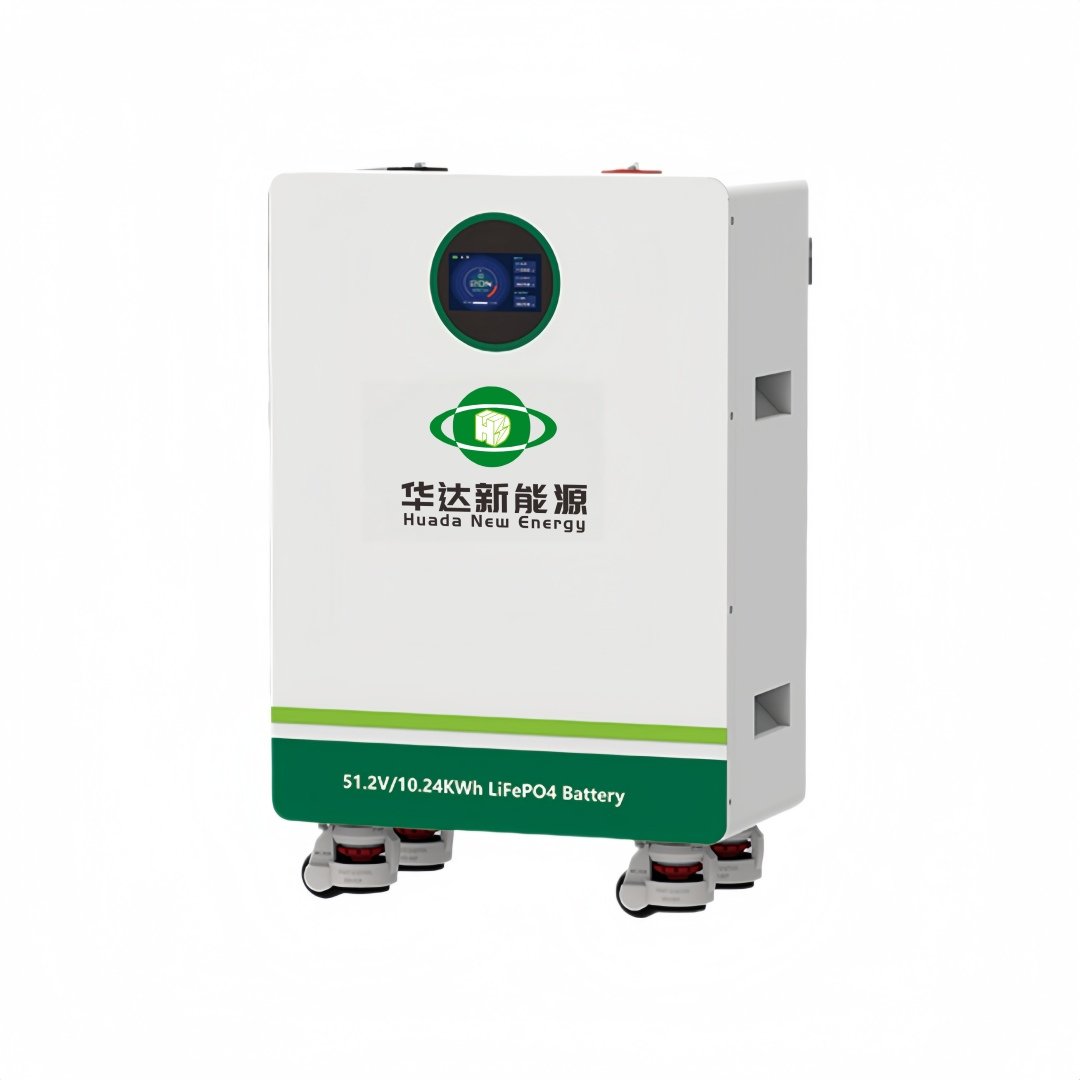

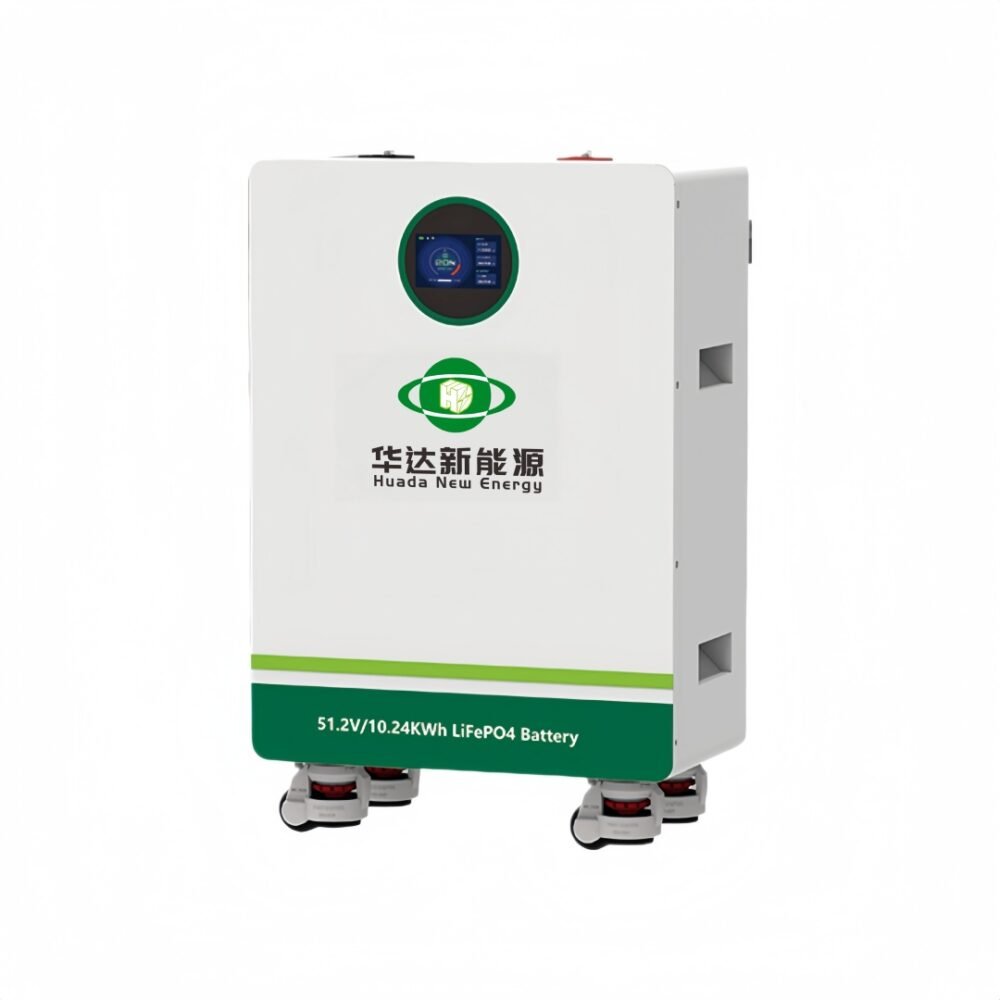

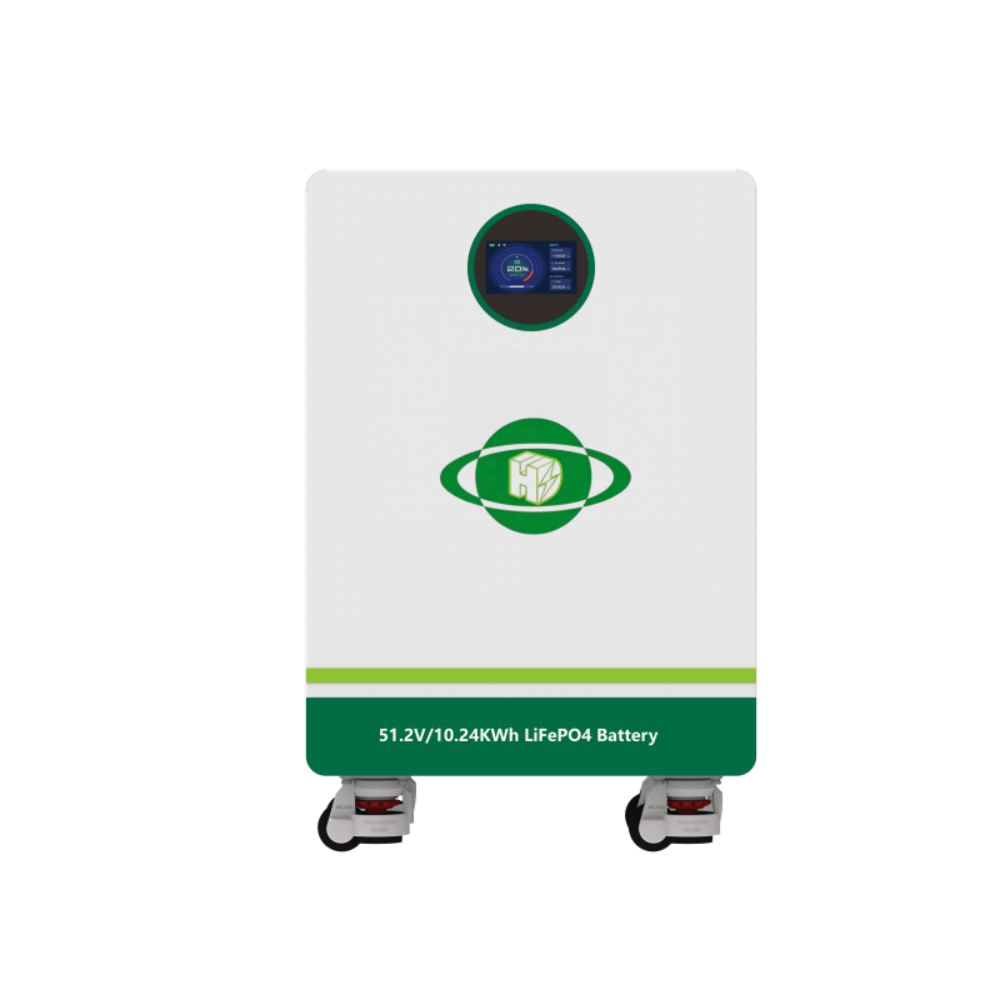

The 51.2V 10kWh Floor Standing Home Energy Storage Battery is an integrated residential energy storage solution for household power needs. Manufactured by Huda New Energy, this floor-standing battery adopts stable structure for simple indoor installation. It can connect with solar panels, utility grid and generators to realize solar self-consumption, peak shaving, emergency backup power and EV charging.
The 10kWh Home Storage Battery is an integrated residential energy storage solution for household power needs. Manufactured by Huda New Energy, this floor-standing 10kWh Home Storage Battery adopts stable structure for simple indoor installation. It can work with solar panels, utility grid and generators to realize solar self-consumption, peak shaving, emergency backup power and EV charging.
This floor-standing home battery is widely used for residential solar energy storage. It helps homeowners store excess solar power generated in daytime for later use.
During grid outages, it supplies emergency backup power to keep essential appliances running. It also supports peak shaving to cut electricity bills and clean EV charging with stored solar energy.
It supports multiple working modes such as off-grid and grid-tied, which effectively realizes peak shaving and load shifting.
Huda supports OEM and ODM service to meet customized requirements for home energy storage projects.
The 10kWh Home Storage Battery adopts LiFePO4 battery cells for long cycle life and stable home energy backup.
| Model | H096-10kWh class |
| Battery capacity | 200Ah/51.2V (10.24kWh) |
| Size (LWH) | L460mmW245mmH620mm |
| Weigh | 95 kg |
| Battery type | LiFePO4 |
| Battery voltage range | 40~58V |
| Communication mode | Support WIFI bluetooth connection with mobile APP |
| Communicate | RS485/CAN |
| Battery cycle life | After 3000 cycles,the remaining capacity is still more than 80% |
| System protection | Over temperature protection/Over voltage protection/Over current protection/Over charge protection/Over discharge protection/Load short circuit protection/Over load protection. |
| Discharge temperature | -20℃~50℃ (The recommended ambient temperature is 20℃ to 30℃.) |
| Charging temperature | -5℃~50℃ (The recommended ambient temperature is 20℃ to 30℃.) |
| Storage temperature | The recommended ambient temperature is 0℃ to 45℃ |
| User Interface | LCD |
| Protection level | IP20 |
| Installation mode | Floor-standing |
| Certification standards | CE FCC ROHS |
Q1: What is 10kWh Home Energy Storage Battery?
A1: The 10kWh Home Energy Storage Battery is a floor standing LiFePO4 energy storage battery for residential solar system. It stores solar power and provides backup power during grid outages.
Q2: Can the 10kWh Home Energy Storage Battery work with solar panels?
A2: Yes. This 10kWh Home Energy Storage Battery is compatible with most solar PV inverters, storing surplus solar energy for night use.
Q3: What is the cycle life of your 10kWh Home Energy Storage Battery?
A3: Our 10kWh Home Energy Storage Battery uses LiFePO4 cells, offering over 6000 cycles, long service life and stable performance.
Q4: Do you support OEM & ODM for the 10kWh Home Energy Storage Battery?
A4: Yes, Huda New Energy accepts OEM and ODM customization. We can adjust parameters to fit your home energy project requirements.
Q5: Is the 10kWh Home Energy Storage Battery safe for indoor installation?
A5: Yes. Built-in smart BMS protects the 10kWh Home Energy Storage Battery from overcharge, over-discharge, short circuit and overheating, safe for indoor use.
