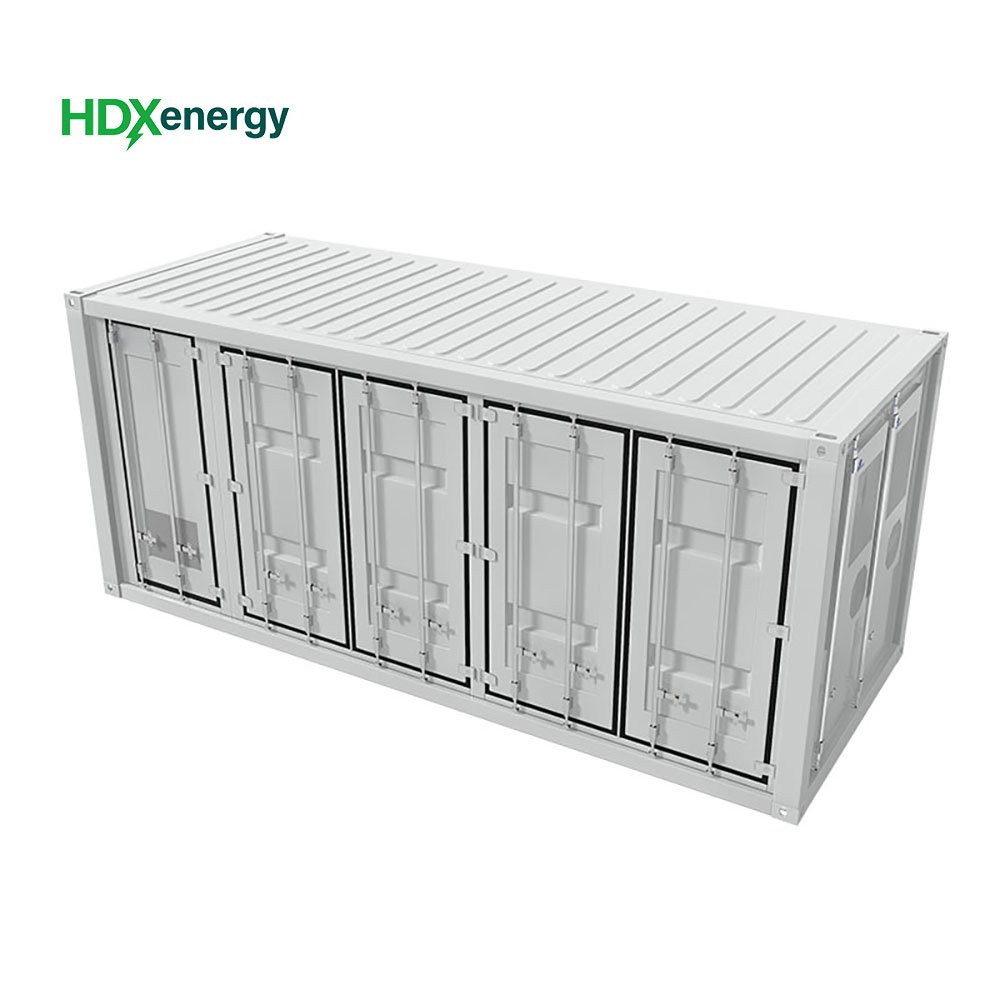

250KW/500KWH Containerized ESS Vendor | Compact & High-Efficiency BESS

Product Features

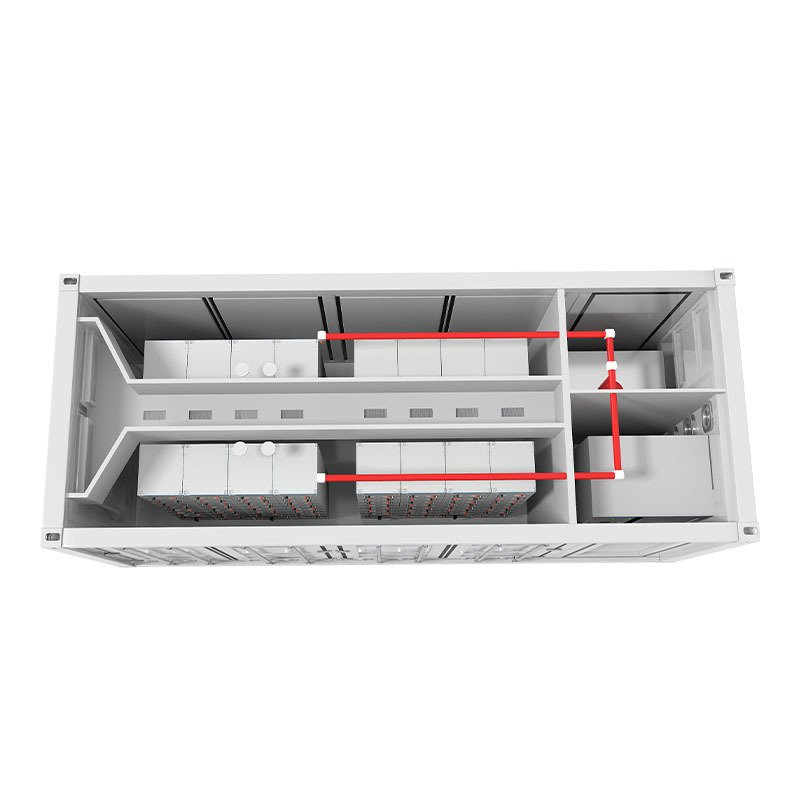

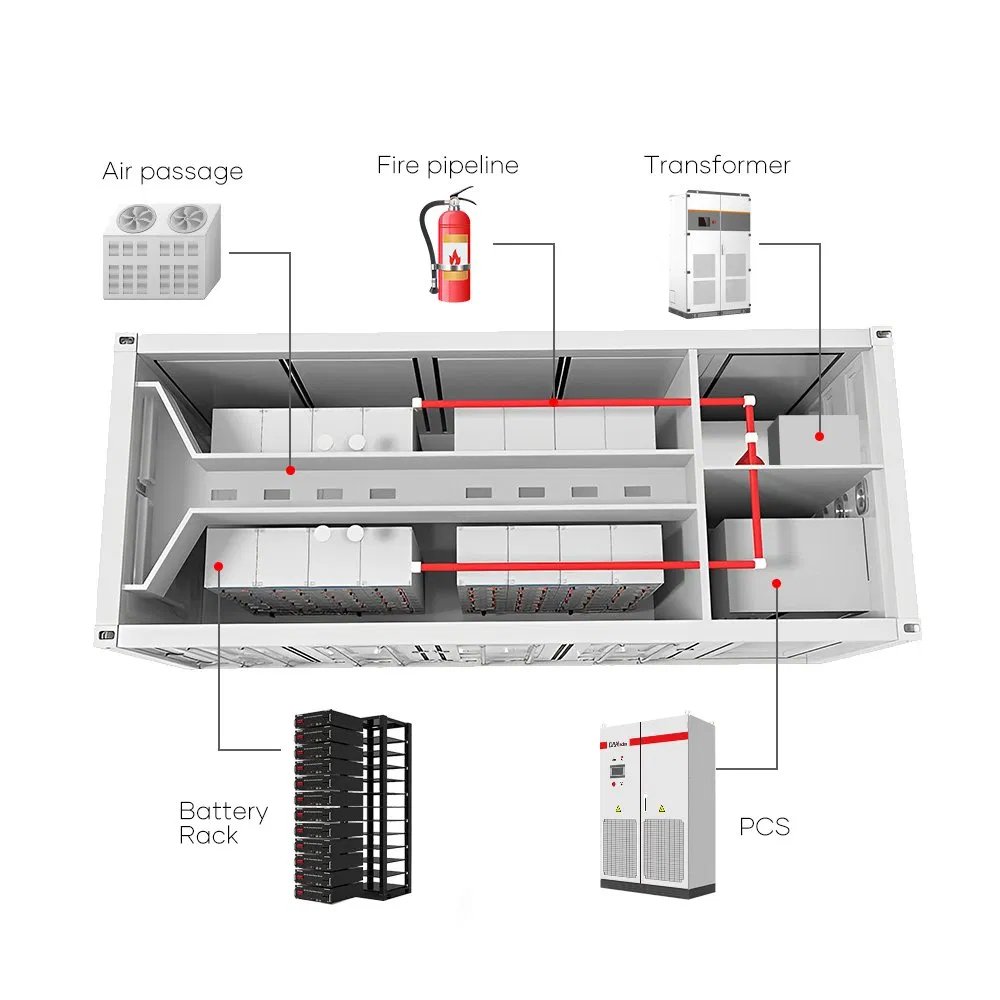

This 250kw/500kwh solar battery storage system is loaded withenergy storage batteries, PCS, photovoltaic controller (MPPT) (optional), BMS management system, EMS management system, power distribution system, environmental control system and fire control system to fully control the system operating status and risks.

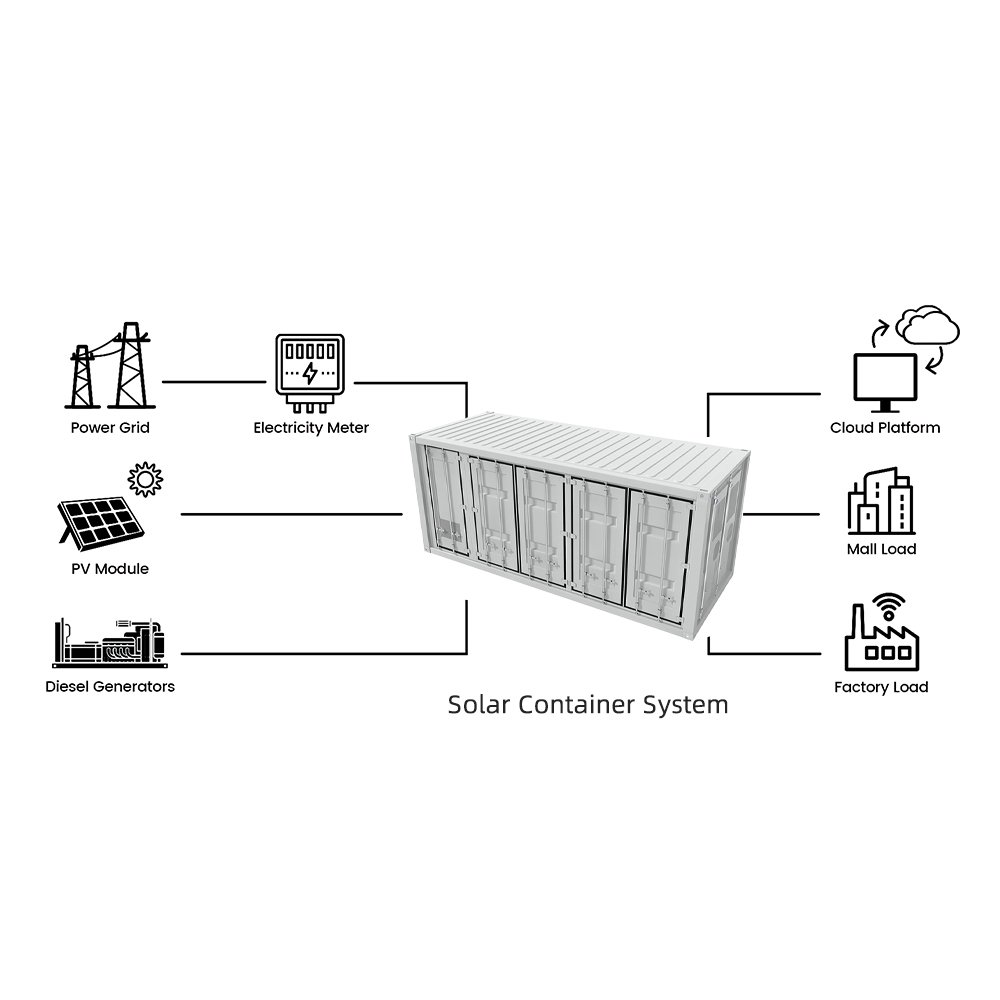

Configured with a rack-mounted modular PCS, it supports parallel connection of multiple machines and has good scalability; the number of PCS modules and the total battery power can be selected according to the solar energy thermal storage system capacity requirements of microgrid and other scenarios.
The protection level is IP54, which can perfectly cope with various types of outdoor weather.
The door-mounted embedded integrated air conditioner does not occupy cabinet space, increases the available space of outdoor cabinets, has better top structural integrity and good waterproofing effect.
The local control panel can realize various functions such as system operation monitoring, energy management strategy formulation, and remote equipment upgrade.

Product model	H098-500kWh
Battery capacity	840Ah/598.4V 502.6kWh)
Rated power	250kW
Peak power	275kW
Battery voltage range	467.5–682.5V
AC rated current	361A
Maximum AC output current	397A

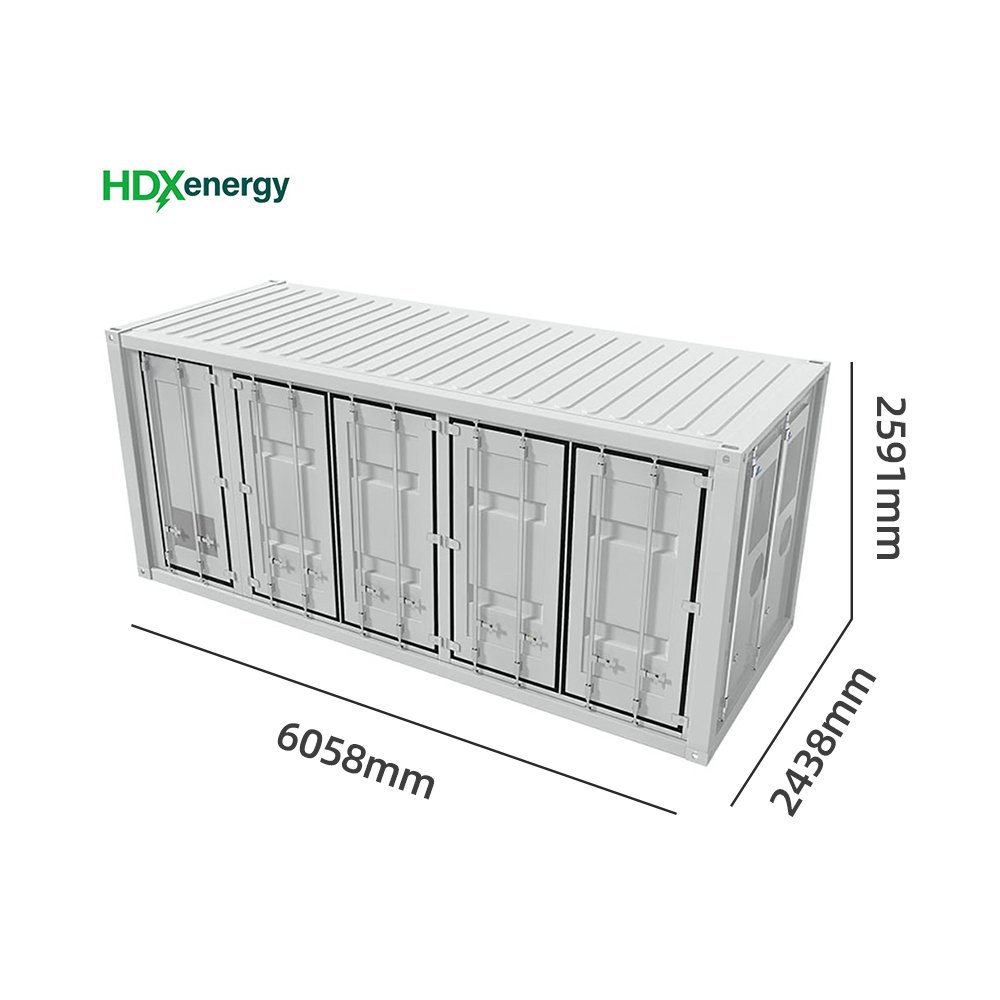

*Size (LWH)*	605824382591(mm)
Weight	11500kg
Battery type	LiFePO4
AC output voltage	400V(-20%~+15%)
Wireless communication	Supports 4G communication
Communicate	RS485/CAN
Battery cycle life	Over 6000 cycles
System protection	Over temperature protecton/Over voltage protection/Over current protection/Over charge protection/Over discharge protection/Load short circuit protection/Over load protection.
Discharge temperature	-20℃~50℃（The recommended ambient temperature is 20℃ to 30℃.）
Charging temperature range	-5℃~50℃（The recommended ambient temperature is 20℃ to 30℃.）
Storage temperature	The recommended ambient temperature is 0℃ to 45℃
Certification standards	IEC UN38.3 MSDS ROHS
